Description

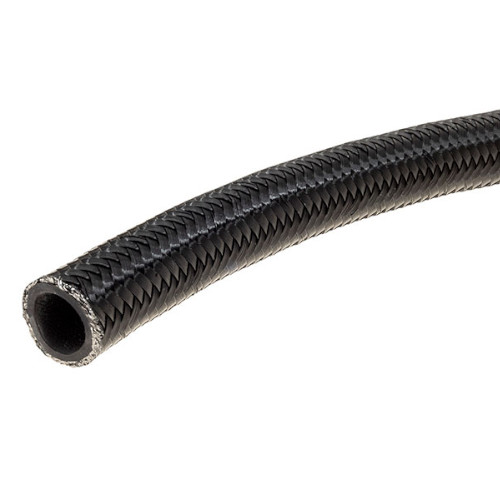

Raceworks 140 Series Cutter Black Braided Hose is resistant to high pressure, temperature, abrasion and corrosion. The internal hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a black double outer braid. Suitable for use with regular fuel, E85, E10, Methanol, Oils, Synthetic Lubricants and Coolant. All Raceworks products come with a 2 year warranty.
Temperature Range: -40°C to 150°C. Ethanol & Methanol Safe
Specifications
| Size | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Weight (gm/m) | Bend Radius (Inch) | Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|
| AN-4 | 1000psi | 6000psi | 7/32″ | 5.5mm | 7/16″ | 11.1mm | TBA | TBA | TBA |
| AN-6 | 1000psi | 6000psi | 11/32″ | 8.7mm | 9/16″ | 13.8mm | TBA | TBA | TBA |
| AN-8 | 1000psi | 5000psi | 7/16″ | 11.1mm | 5/8″ | 15.7mm | TBA | TBA | TBA |
| AN-10 | 1000psi | 5000psi | 9/16″ | 14.2mm | 13/16″ | 20.8mm | TBA | TBA | TBA |
| AN-12 | 1000psi | 3750psi | 11/16″ | 17.4mm | 15/16″ | 23.9mm | TBA | TBA | TBA |
| AN-16 | 750psi | 2500psi | 7/8″ | 22.2mm | 13/64″ | 30.5mm | TBA | TBA | TBA |
| AN-20 | 500psi | 2000psi | 1-1/8″ | 28.5mm | 1-13/32″ | 35.8mm | TBA | TBA | TBA |
