Description

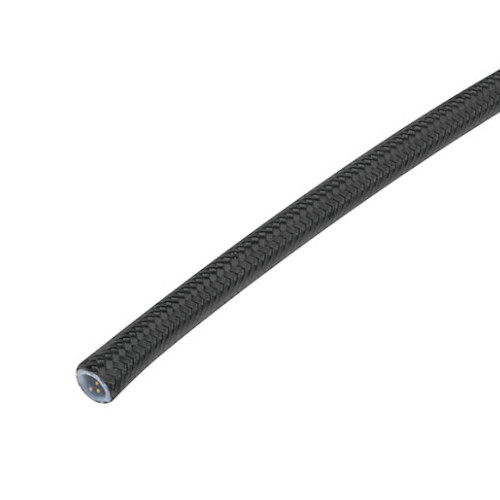

Raceworks 230 Series PTFE Black Braided Hose is constructed from a PTFE inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE tube as a Black Electroplated Stainless Outer Cover that is durable and resistant to expansion. The Raceworks 230 Series Hose is the best option for use on fuel systems as it won’t allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses. All Raceworks products come with a 2 year warranty.
Temperature Range: -70degC to 250degC. Ethanol & Methanol Safe
Specifications
| Size | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Weight (gm/m) | Bend Radius (Inch) | Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|
| AN-3 | 3000psi | 10000psi | 1/8″ | 3.1mm | 1/4″ | 6.4mm | 64g | 55/64″ | 22mm |
| AN-4 | 3000psi | 10000psi | 3/16″ | 4.7mm | 5/16″ | 7.9mm | 77g | 1-1/32″ | 26mm |
| AN-6 | 2500psi | 9000psi | 5/16″ | 7.9mm | 15/32″ | 11.8mm | 120g | 1-1/2″ | 38mm |
| AN-8 | 2000psi | 7000psi | 13/32″ | 10.5mm | 17/32″ | 13.3mm | 140g | 1-7/8″ | 48mm |
| AN-10 | 1500psi | 5000psi | 17/32″ | 13.4mm | 41/64″ | 16.2mm | 202g | 2-7/16″ | 62mm |
| AN-12 | 1200psi | 4500psi | 41/64″ | 16.2mm | 49/64″ | 19.3mm | 248g | 3-5/32″ | 80mm |
