Description

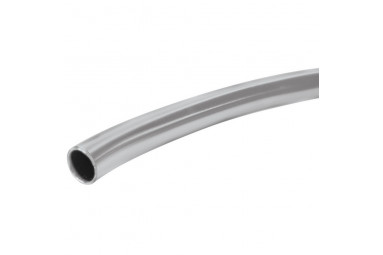

Raceworks 600 Series Hard Line is extruded from lightweight, seamless aluminium tube, and is available in four sizes. Can be used with our tube straightener RWT-044.
Wall Thickness of 1mm. Ethanol and Methanol Safe.
| 7M Length Part Number | AN | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Weight (gm/m) | Finish |
|---|---|---|---|---|---|---|---|---|---|
| RWH-600-04 | -4 | 1800psi | 2400psi | 11/64″ | 4.35mm | 1/4″ | 6.4mm | 48g | Raw |
| RWH-600-05 | -5 | 1400psi | 2100psi | 15/64″ | 5.9mm | 5/16″ | 7.9mm | 61g | Raw |
| RWH-600-06 | -6 | 1100psi | 1700psi | 19/64″ | 7.5mm | 3/8″ | 9.5mm | 75g | Raw |
| RWH-600-08 | -8 | 550psi | 1100psi | 27/64″ | 10.7mm | 1/2″ | 12.7mm | 104g | Raw |
| RWH-600-10 | -10 | 420psi | 550psi | 35/64″ | 13.9mm | 5/8″ | 15.8mm | 128g | Raw |
