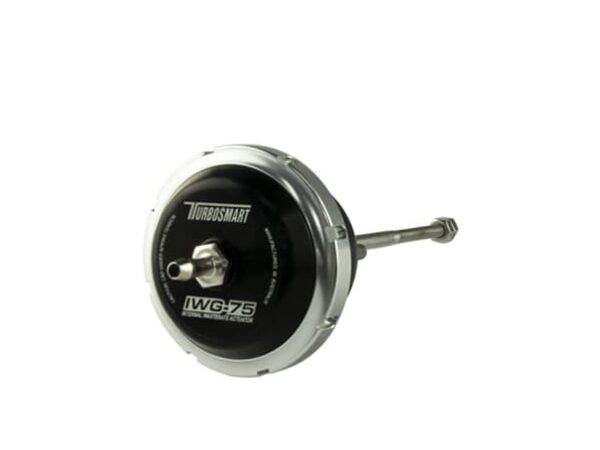

IWG75 BW B1 Single scroll 14 PSI

Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response, throughout the RPM range.

This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.

Available In
EFR B1 Single Scroll / Single Port (14psi): TS-0620-1142
EFR B1 Twin Scroll / Single Port (14psi):   TS-0620-2142
EFR B2 Both Scroll  /  Single Port (14psi): TS-0620-3142

GenV Twin Port Suit all EFR Series:TS-0620-4012
GenV Twin Port Suit all EFF Series: TS-0620-4014 (inc. Position Sensors)

Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

This is a bolt on fitment for the Borg Warner EFR B1 Single Scroll turbocharger series.
