RACEWORKS FUEL PUMP HANGER SUITS SINGLE/TWIN 39MM-40MM PUMPS

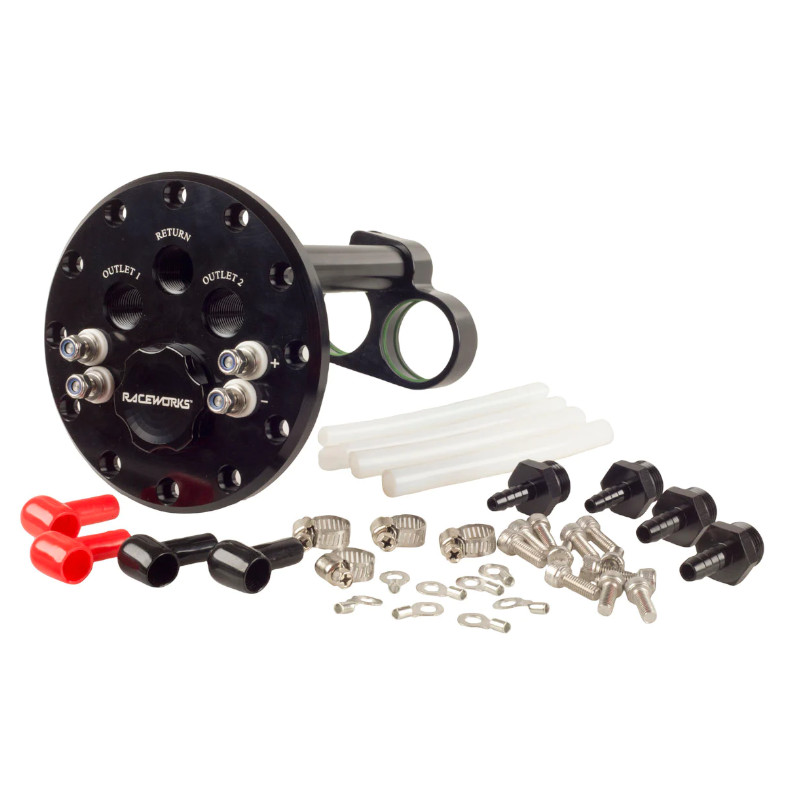

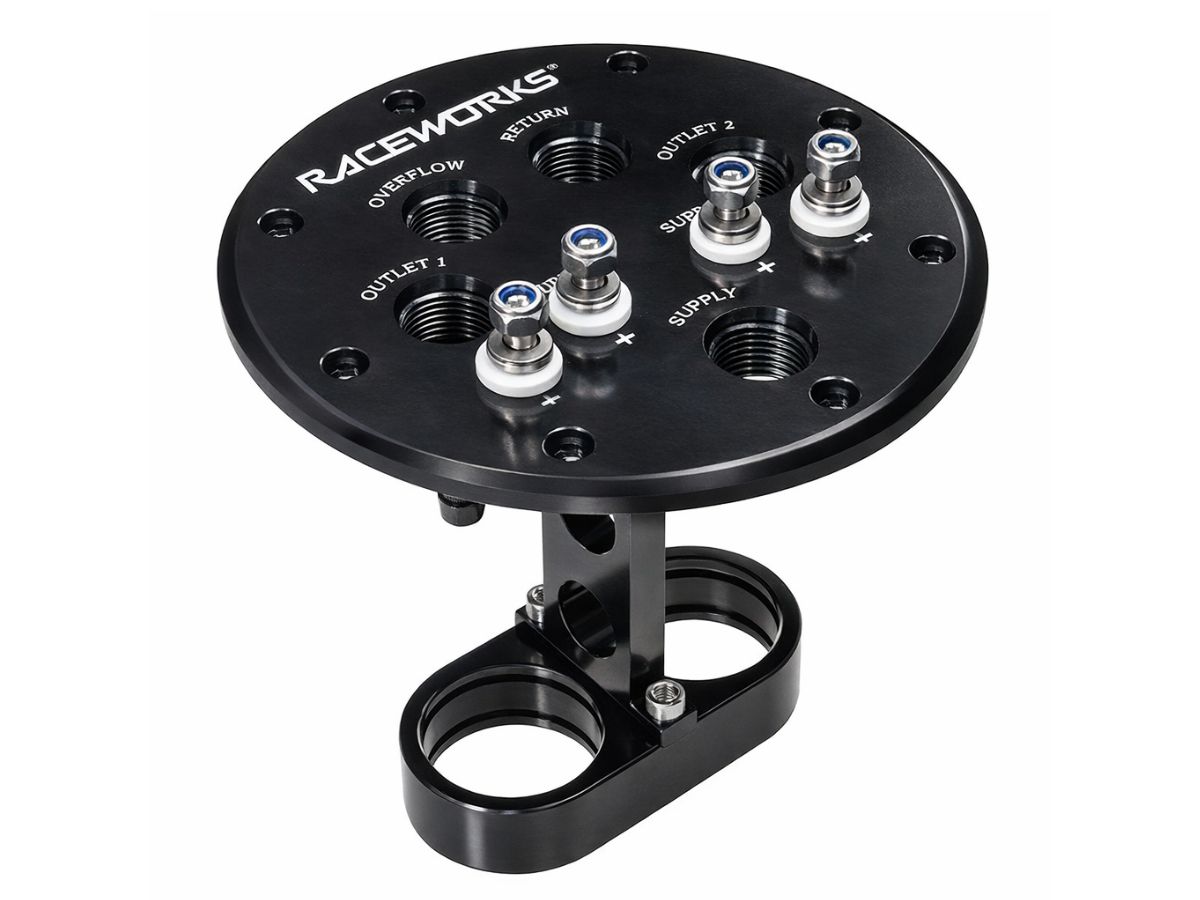

Raceworks Twin Fuel Pump Hanger 39mm. Suits single or dual Walbro 255 & 460 39mm – 40mm Pumps.

Anodized black, this alloy dual fuel pump hanger can be fitted with one or two pumps, and has dual stainless electrical terminals allowing the pumps to be staged separately. E85 ready with teflon seals and viton o-rings. AN -8 O-Ring Ports.

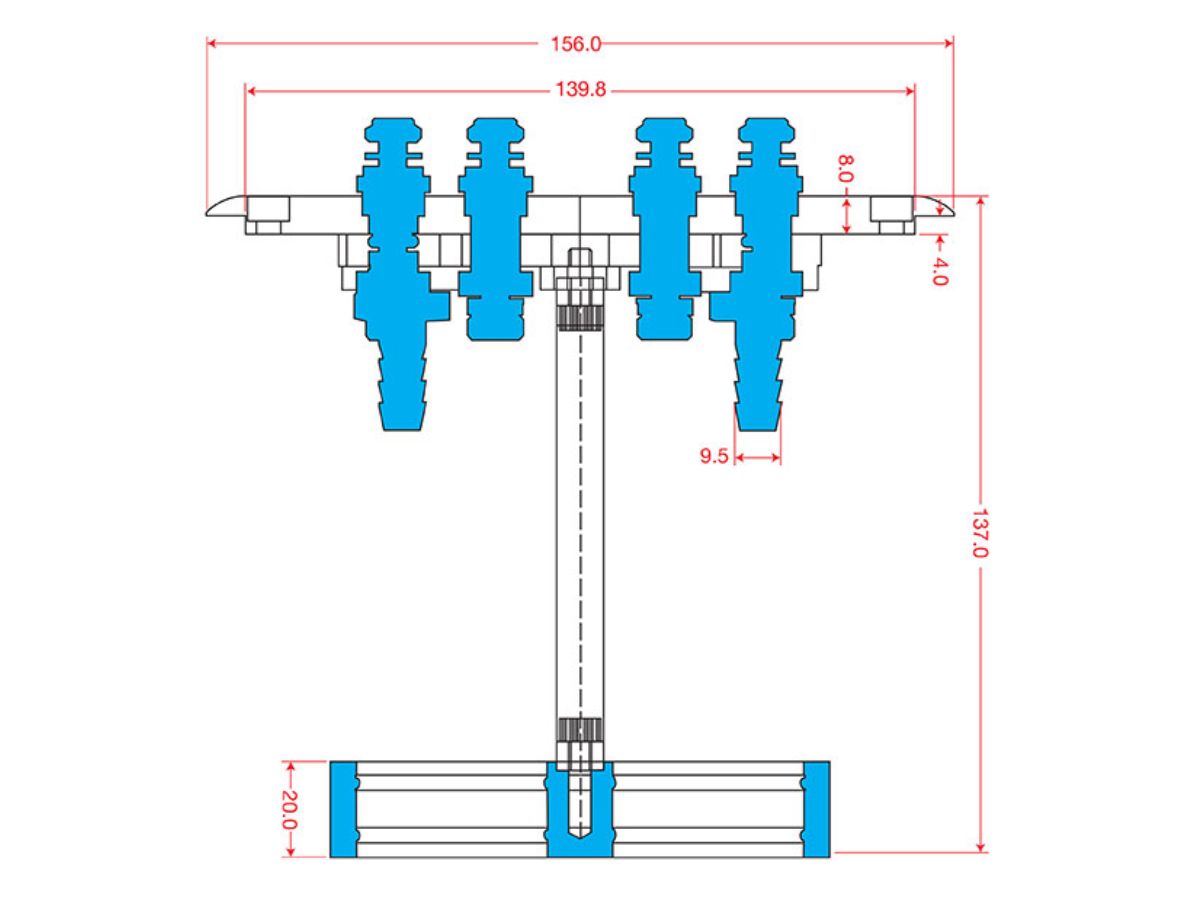

These hangers are ideal for retrofitting an EFI fuel pump into older steel or plastic tank carby vehicles. See the linked items for the weld on ring for mounting, fuel pumps and fittings. Dimensions in attached image but adjustable between 180mm and 220mm by mounting the pump at different height. Requires O-Ring weld ring in related products below.

Raceworks fuel pump brackets have been designed to attractively mount and insulate a variety of fuel pumps. The range includes brackets for single or twin-mount configuration of 60mm and 38mm pumps, engineered from precision alloy, and hardcoat anodised to enhance your fuel system installation.

Suitable for Tanks with Height 180-220mm.
For increased height of 240-260mm, use ALY-224BK bracket & Hose Kit

All Raceworks products come with a 2 year warranty.

Compatibility List
