Nexus S3 Plug ‘n’ Play Adapter Harness Kit – Nissan Patrol Y60 Y61 Auto

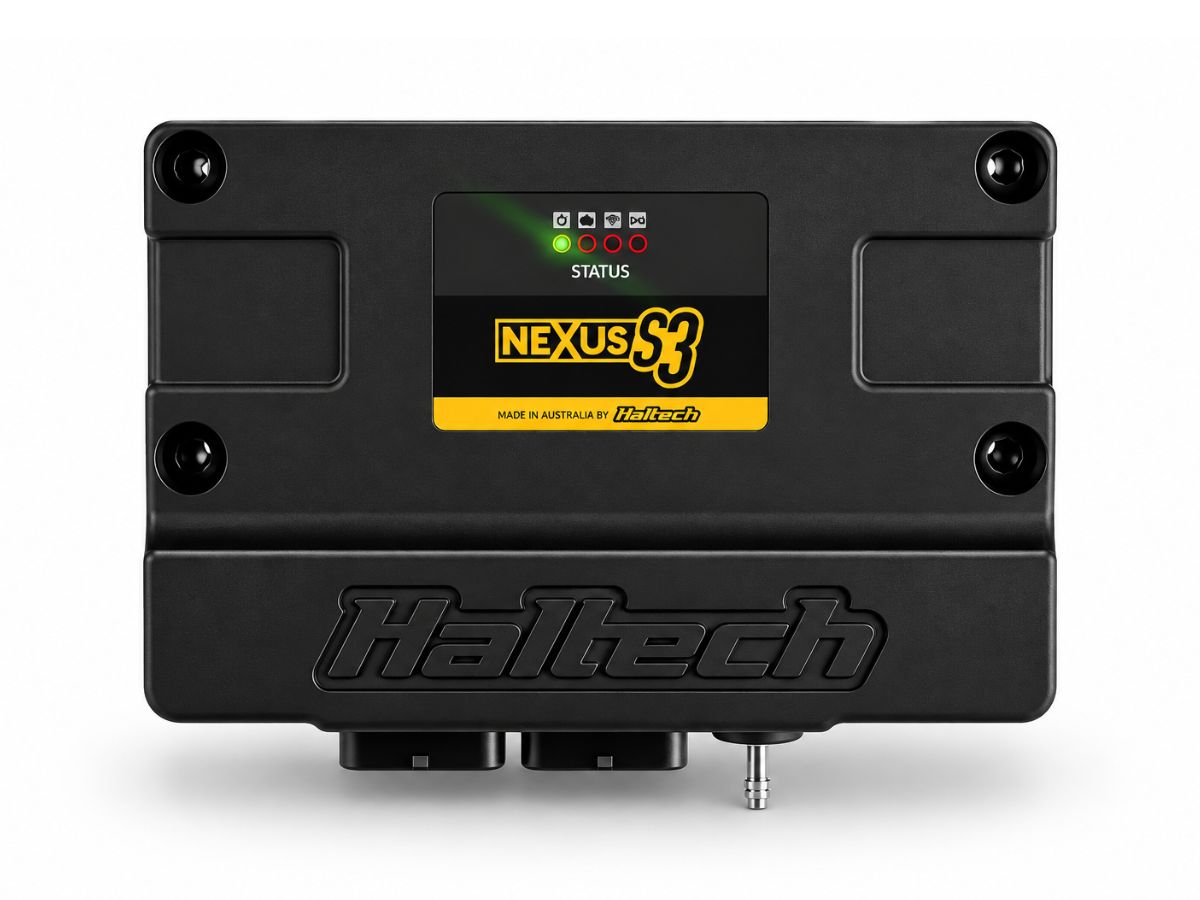

The Nexus S3 Plug ‘n’ Play Adapter Harness Kit – Nissan Patrol Y60 Y61 Auto is a Haltech engine management ECU engineered to give you full control over fuel, ignition and auxiliary functions for serious performance builds.

If you are using a factory harness and are after an easy ECU upgrade, take a look at Haltech Plug ‘n’ Play Adapter Kits. These adapters plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.

Suits:

• Plug ‘n’ Play replacement of the factory ECU for Nissan Patrol/Safari Y60 and Y61 with automatic or manual transmissions. (No shift re-programming/control etc.) TB45E Only.

Includes:

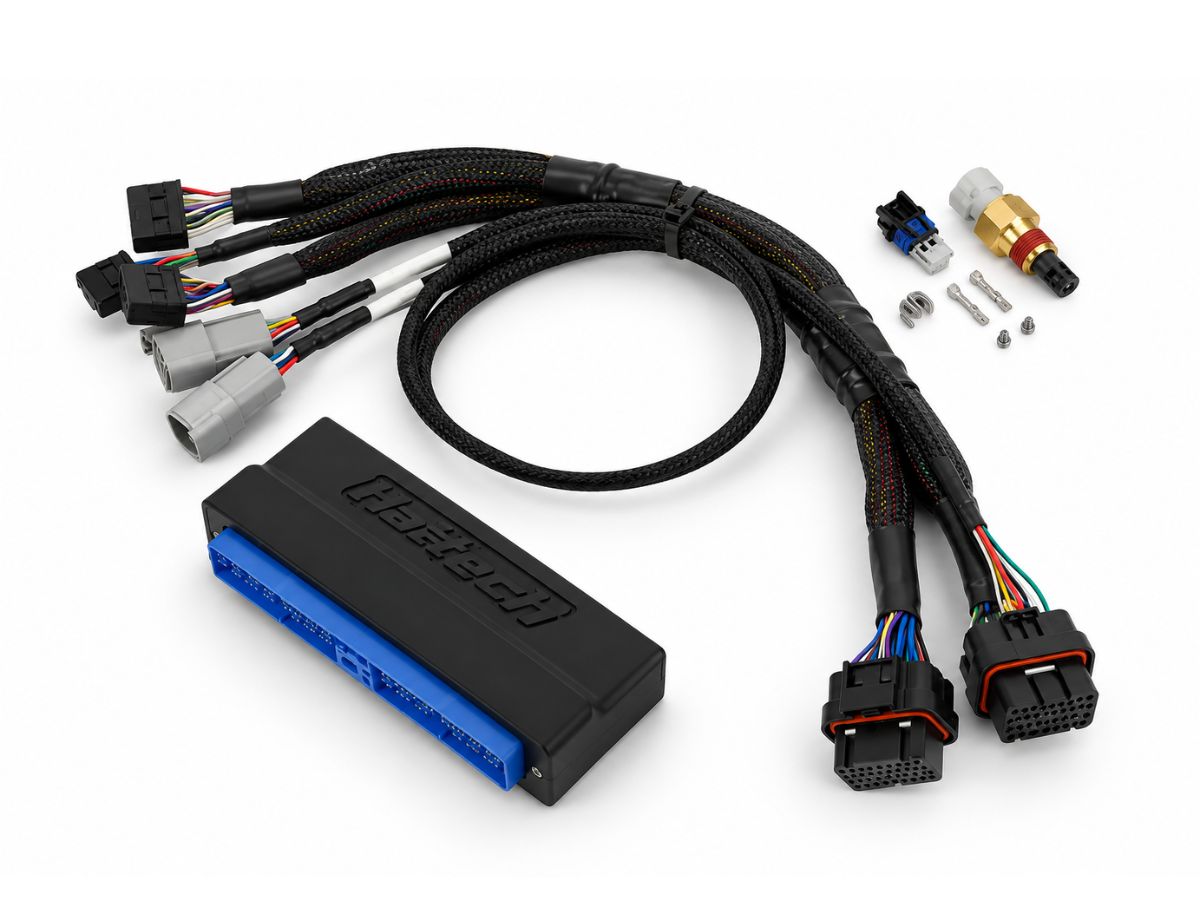

• Nexus S3 ECU, Injection molded plastic plug ‘n’ play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.

Installation & Notes:

• A simple Haltech Plug ‘n’ Play product that allows you to be up and running in just a few hours.
• The quick start guide will walk you through installation of the Haltech Plug ‘n’ Play adapter into your vehicle.

• 8 x peak/hold injector drivers (can be used as low side drive outputs)
• 8 x low current ignition outputs (can be used as low side drive outputs)
• 6 x low side drive outputs, PWM capable (DPOs)
• 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
• 1 x ECR output
• 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
• Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
• 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds – cam sensor inputs, frequency inputs or 0-5V analog inputs
• 1 x on-board wideband controller, supporting NTK and LSU4.9
• 1 x on-board 4 bar MAP sensor
• 2 x CAN ports with switchable termination
• Onboard data logging – Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 128MB of internal memory

• A simple Haltech Plug ‘n’ Play product that allows you to be up and running in just a few hours.
• The quick start guide will walk you through installation of the Haltech Plug ‘n’ Play adapter into your vehicle.

Backed by Haltech and supplied genuine through PZP, Perth’s specialists in Haltech engine management systems.
