Rebel LS Kit – Suits Gen IV – 6-pin DBW, EV6 Injectors , Manual Transmission

The Rebel LS Kit – Suits Gen IV – 6-pin DBW, EV6 Injectors, Manual Transmission is a Haltech fuel injector, sized and engineered for accurate, high-flow fuel delivery.

Rebel LS Kit – Suits Gen IV – 6-pin DBW, EV6 Injectors, Manual Transmission. Kit Includes: HT-220001 – Rebel ECU HT-186500 – Main Harness HT-186505 – 6 Pin DBW Adaptor HT-186507 – Corvette pedal adaptor HT-186502- LS EV6 Injector Sub-Harness HT-187003 – T56 Transmission Harness HT-186123 – 2 Pin Bosch Alternator Harness HT-186124 – 4 Pin Delco Alternator Harness HT-186125 – 2 Pin Yazaki Alternator Harness HT-186510 – Gen IV Oil pressure sensor adaptor harness HT-186511 – Gen IV MAP sensor adaptor harness Sensor Pack Which Includes * Bosch LSU 4.9 Sensor * Weld on fitting for O2 Sensor * Air Temperature Sensor M14 x 1.5 * Weld on fitting for Air Temp Sensor

With the Rebel LS, all the hard work is done. It is the best, quickest, and easiest way to get your LS-swap up and running!

Key Features:

• Kit Includes:

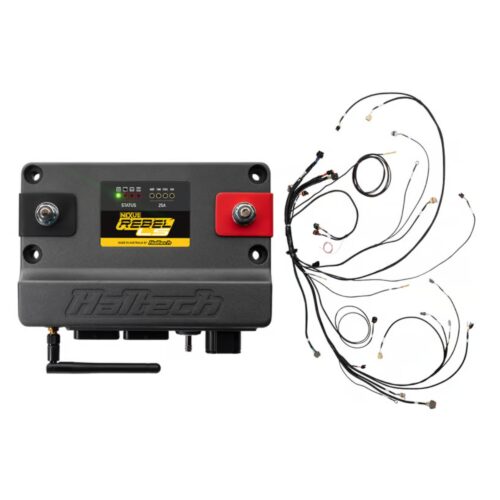

• HT-220001 – Rebel ECU
• HT-186500 – Main Harness

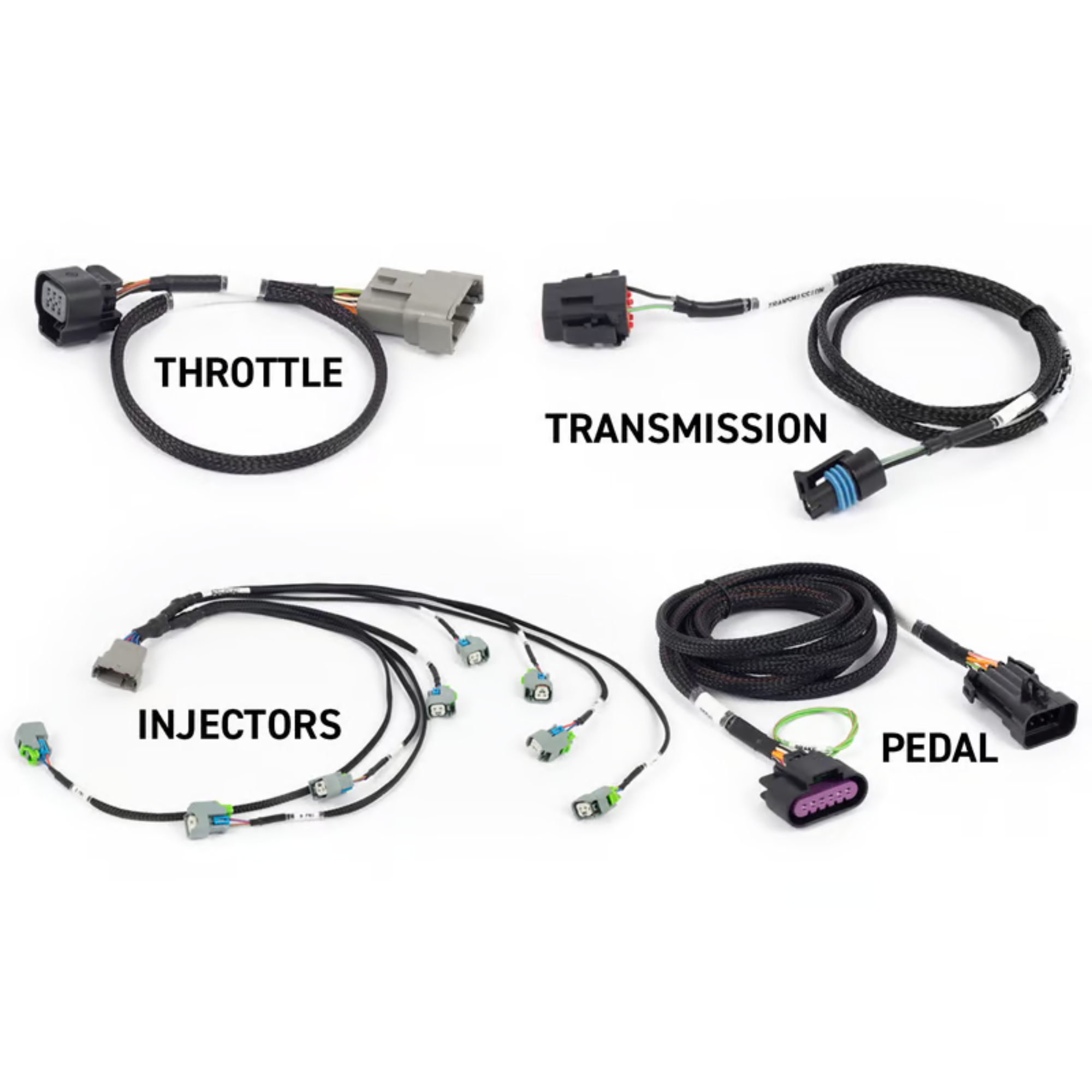

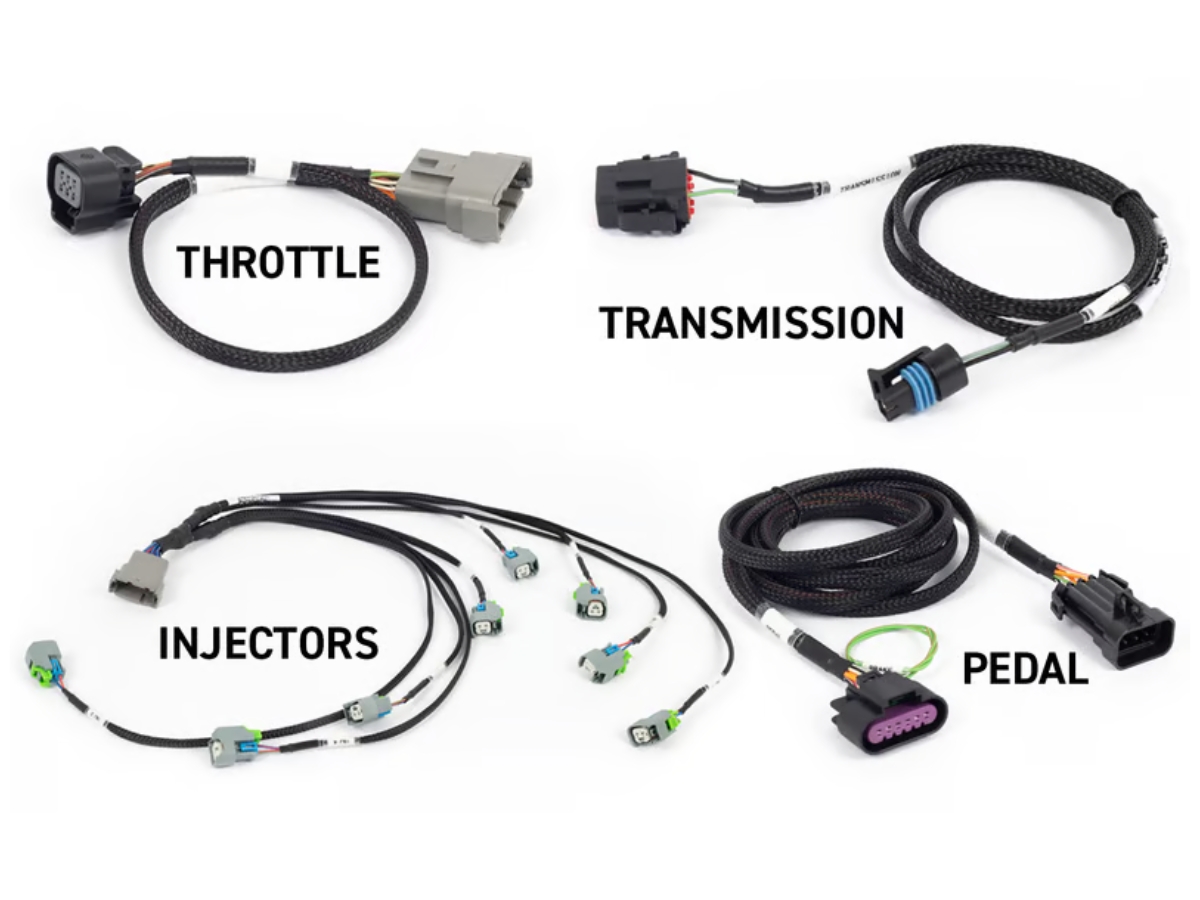

• HT-186505 – 6 Pin DBW Adaptor
• HT-186507 – Corvette pedal adaptor
• HT-186502- LS EV6 Injector Sub-Harness
• HT-187003 – T56 Transmission Harness

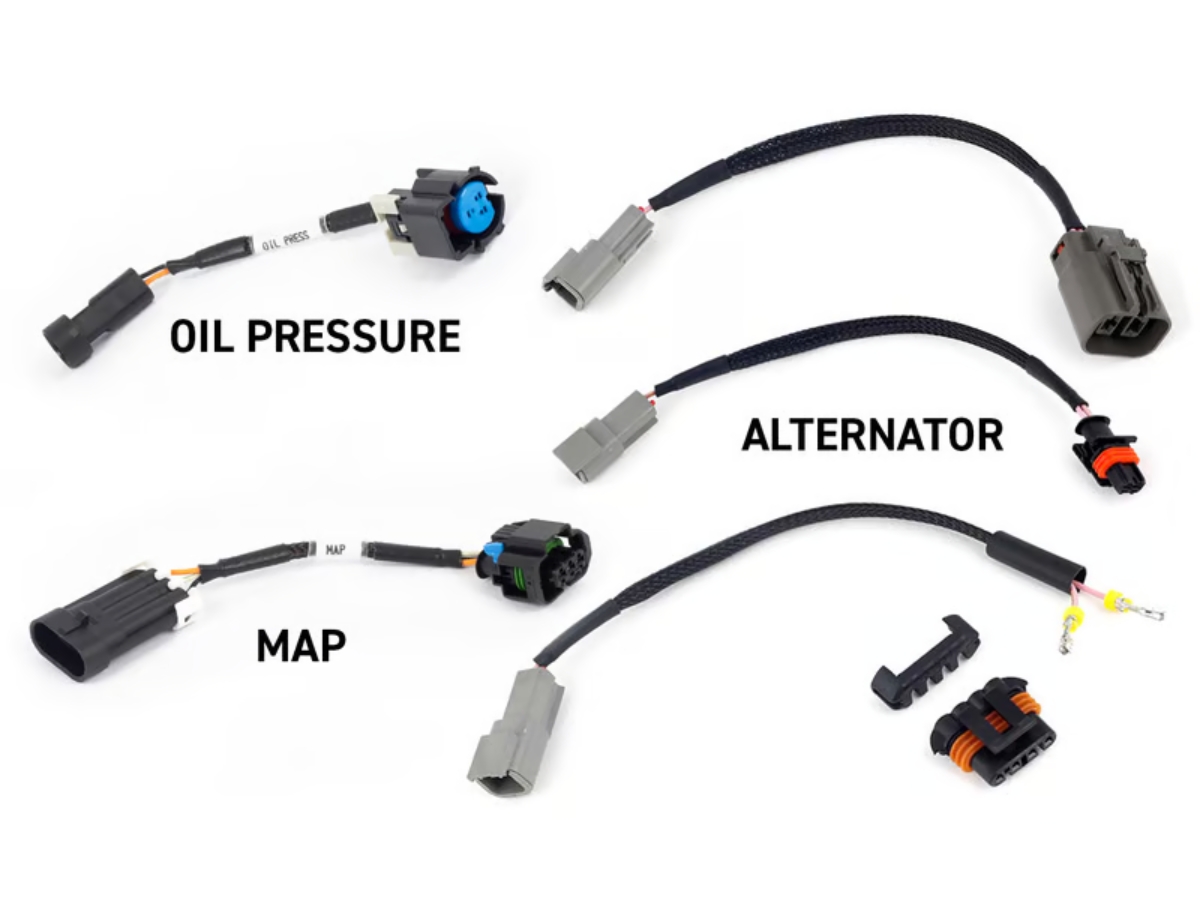

• HT-186123 – 2 Pin Bosch Alternator Harness
• HT-186124 – 4 Pin Delco Alternator Harness
• HT-186125 – 2 Pin Yazaki Alternator Harness
• HT-186510 – Gen IV Oil pressure sensor adaptor harness
• HT-186511 – Gen IV MAP sensor adaptor harness

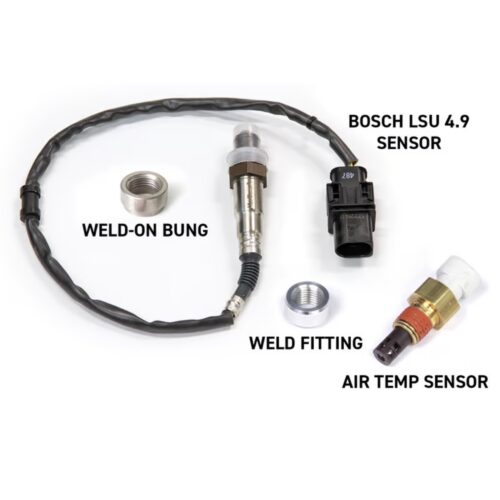

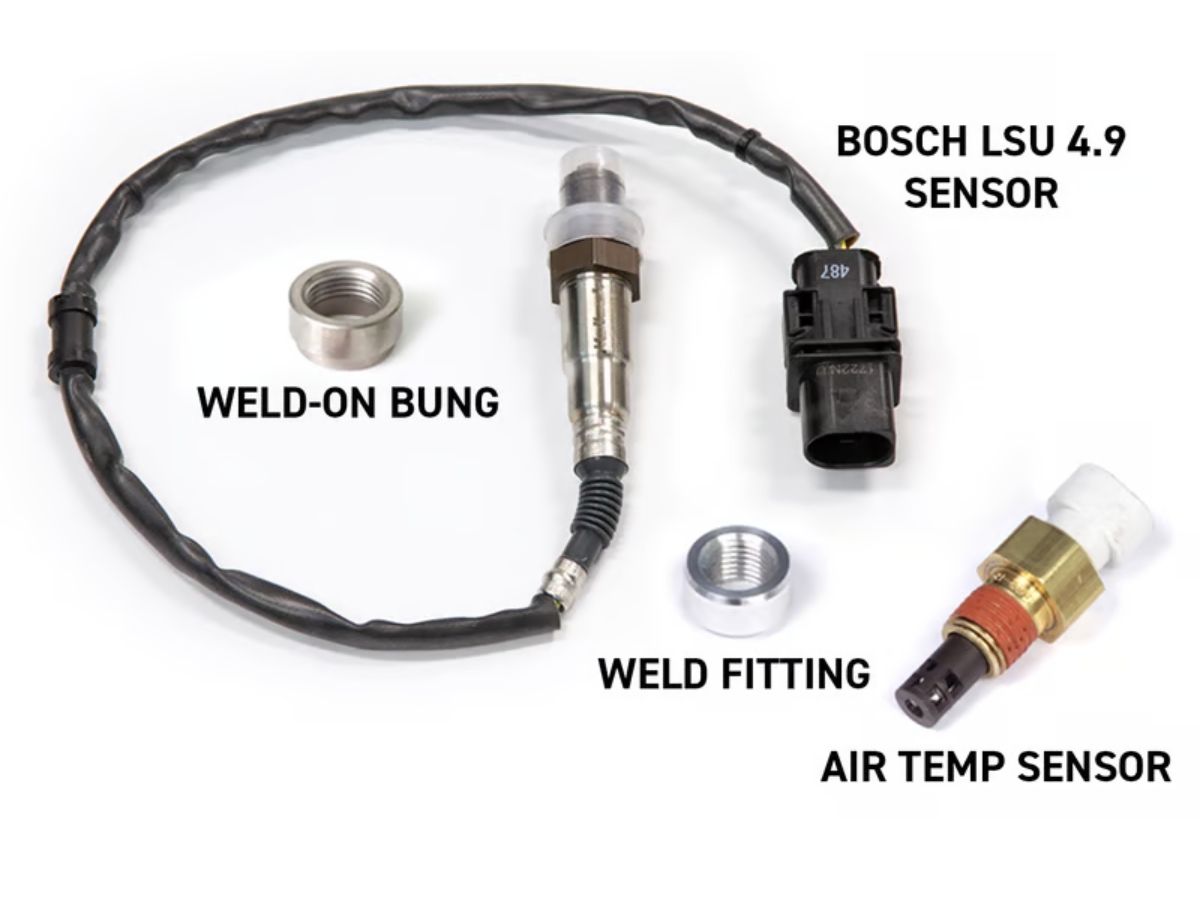

• Sensor Pack
• Bosch LSU 4.9 Sensor
• Weld on fitting for O2 Sensor
• Air Temperature Sensor M14 x 1.5
• Weld on fitting for Air Temp Sensor

Suits:

• Gen IV LS – 6-pin DBW, EV6 Injectors, Manual Transmission

Installation & Notes:

• ECU designed from the ground up to suit GM’s popular LS engine platform
• Start-up is a breeze thanks to the new LS Set-up Wizard in our NSP software
• Comes complete with an easy-to-install harness to suit multiple GM LS applications
• Easy integration with Haltech dashes, PDMs, sensor kits, and accessories
• Kit Supports Gen IV engines with drive by wire (DBW).

Backed by Haltech and supplied genuine through PZP, Perth’s specialists in Haltech engine management systems.
