Description

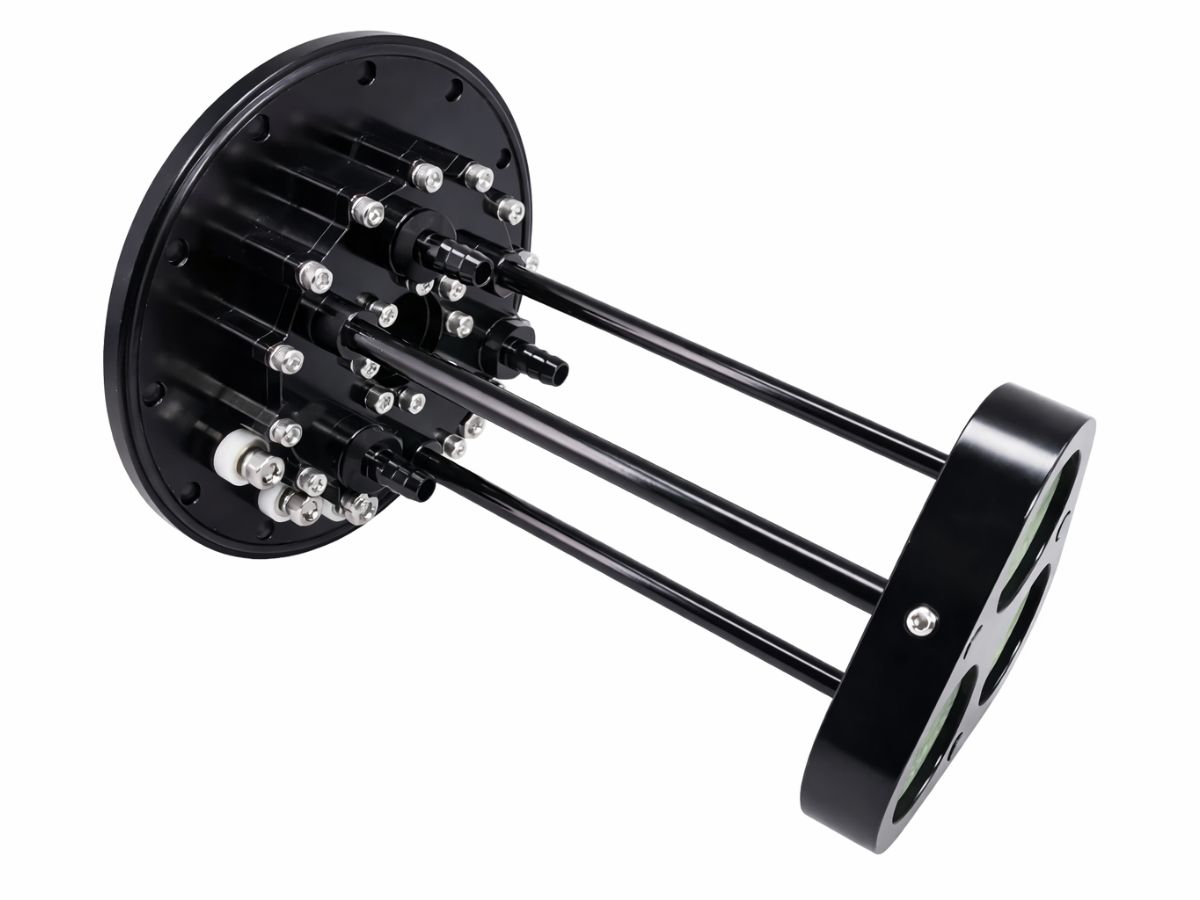

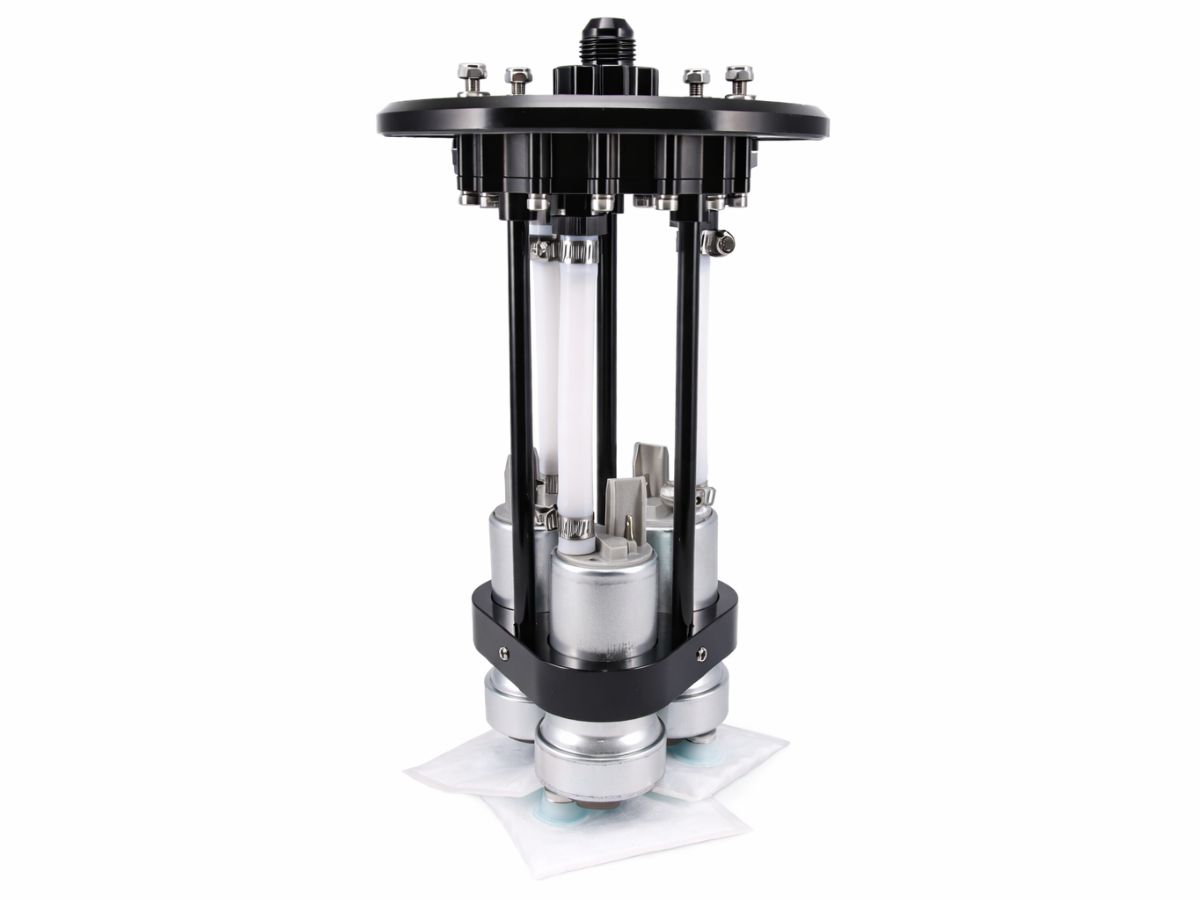

The Raceworks Hanger is designed for fitting into the ALY-27xBK range of Fuel Cells, or may be used in a custom fuel tank through the use of a steel or aluminium weld ring. It holds 1-3 pumps of diameter 39-40mm.
| Specifications |
|---|

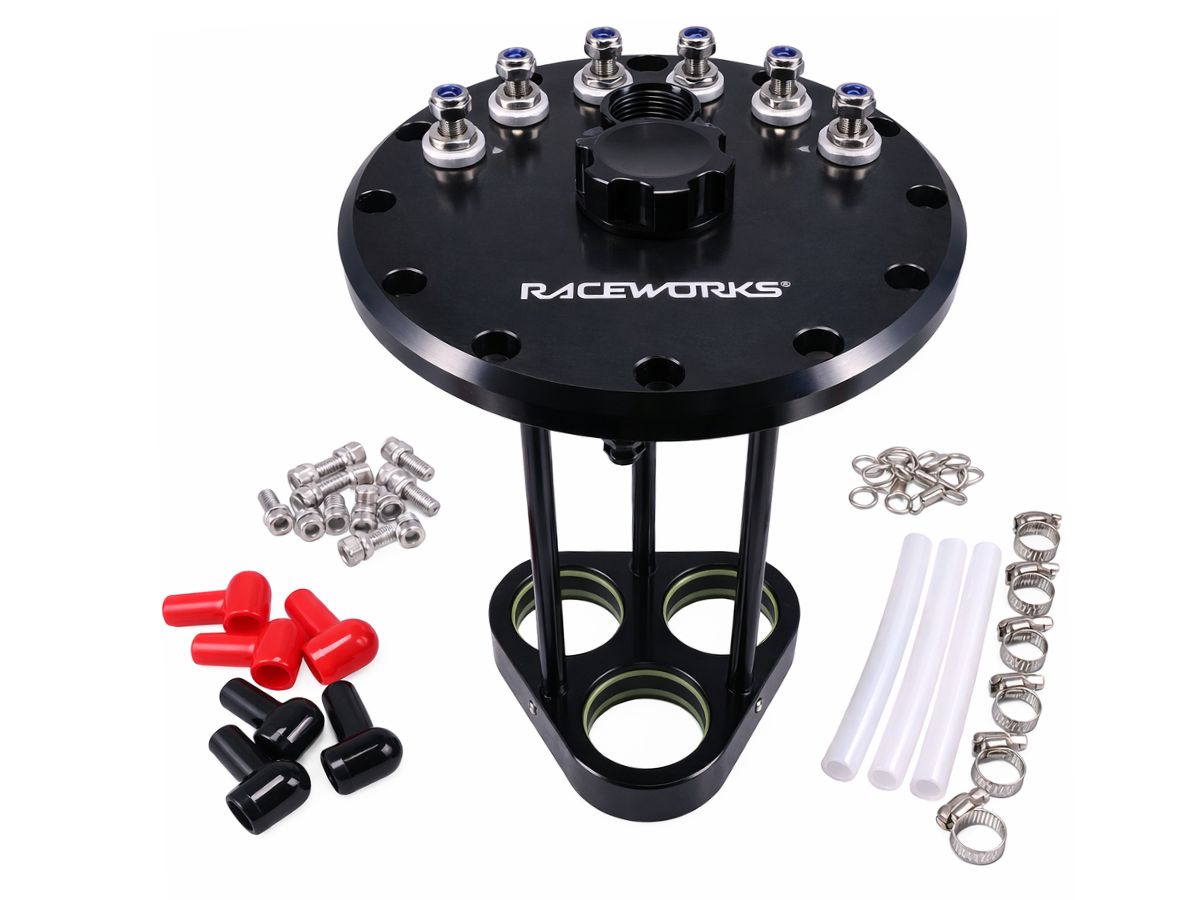

| Adjustable in height. Single AN-10 ORB Outlet Triple AN-6 ORB pump inlets. Includes 10mm barb inlet fittings, and PTFE hose. 6 x Stainless Electrical Terminals with PTFE seals, allowing the pumps to be triple staged. Anodised in Black, providing corrosion resistance when used with E85 When used with a weld ring, suits a tank height of 195mm to 265mm. |
| Part Number |
|---|
| ALY-195BK |
Compatibility List
| Raceworks | Ti Automotive (Walbro) |
|---|---|
| EFP-500 | F90000262* |
| F90000267* | |
| F90000274* | |
| F90000285* | |
| F90000295* | |
| GSS340 | |
| GSS341 | |
| GSS342 | |
| GSS350 | |
| GSS351 | |
| GSS352 |
Weld Ring
| Material | Part Number |
|---|---|
| Aluminium | ALY-241-A |
| Steel | ALY-241-S |
